SPL Terminal

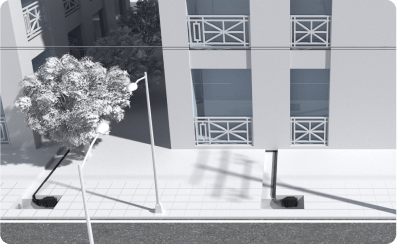

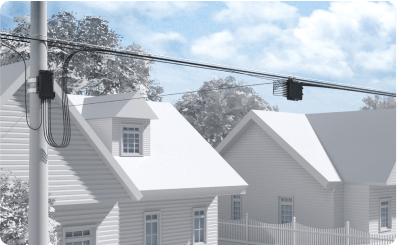

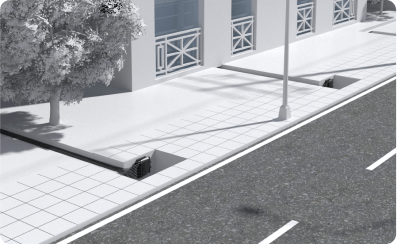

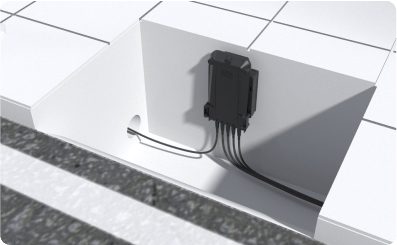

HODT-PSPL-010N series accommodate 1xN PLC Splitter which one input signal is distributed to multiple subscribers or branched to other terminals. Those are mountable at various OSP application, Pole, Strand, Wall, and Handhole
Features and Benefits
- Easy, Quick and Simple Access, Push&Pull mating
- Compact Size
- Premium Grade PLC Splitter
- IP68 environmental rating
Specifications
Distribution
1xN PLC Splitter, P to mPInput
1 port, PSPL, SC/APC
Output
2,4,8,16 ports, PSPL, SC/APC
Mounting
Pole, Strand, Handhole, Wall
Download
PSPL Hardened Terminal
English
SPL Terminal_2ch
English
SPL Terminal_4ch
English
SPL Terminal_8ch
English
SPL Terminal_16ch
English
SWIFT-FX Hardened Solution
English

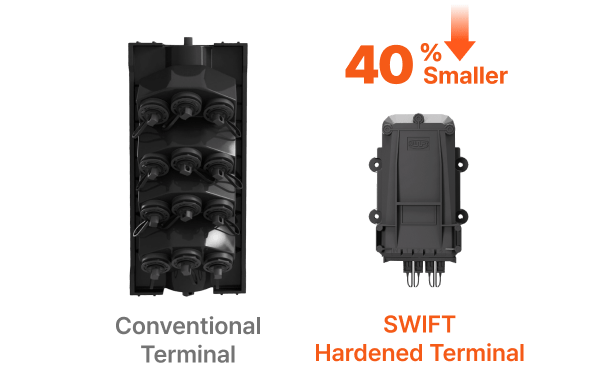

Save Space without Sacrificing Performance
Small, easy to mount IP68-rated terminals deliver reliable and long-term performance.

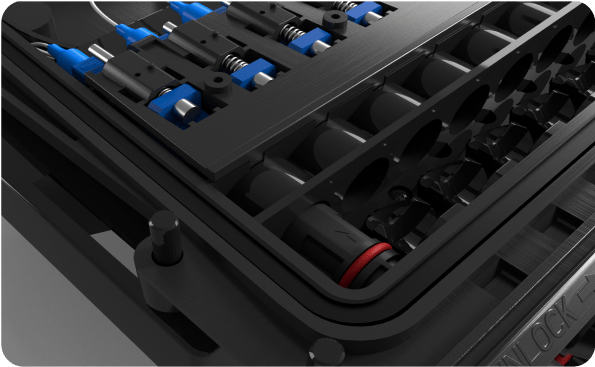

Push-Pull Mating, Deploy with Speed and Ease
Intuitive design for simple use. Easier and faster mating compared with screw-type conventional hardened terminal.
Enhancing City Aesthetics with On-Site Fusion Splicing Tech
Before
Pre-connectorized drop cable terminated at the factory has extra cable slack.
After
Cables are built to Length on-site without unnecessary coils or waste.
