  • PSPL type Hardened FSOC

PSPL type Hardened FSOC

UCL’s PSPL Hardened FSOC Series are field-installable hardened connectors designed for outdoor fiber networks. These connectors are directly terminated using UCL’s All-In-One fusion splicers (KF4A-HDC and K33A-HDC), helping technicians reduce extra cable slack and simplify network installation. They offer quick push-and-pull mating for fast connections and are highly reliable with IP68 protection for harsh environments. The connectors ensure low insertion loss (0.15dB typical) and excellent return loss performance (55dB for UPC and 65dB for APC), making them suitable for stable and long-term OSP deployment. Operating temperature ranges from -40°C to 75°C.

Categories , Tags , , , , , , , , , , , , ,
Description

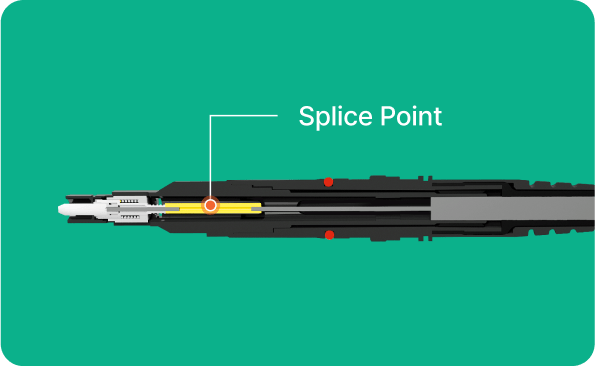

UCL‘s PSPL Hardened FSOC series are field installable hardened connectors terminated on UCL‘s All-In-One fusion splicer(KF4A-HDC and K33A-HDC) that figure out the concerns of OSP design technician, extra cable slack which cause to increase cost and not easy maintenance.
Features and Benefits
Eliminates Cable Shorts and Excess Slack
Cost and Inventory Effective
Quick and Easy Connection, Push&Pull mating
IP68 environmental rating Specifications
Insertion Loss
0.3dB(Max), 0.15dB(Typ.)

Return Loss(min)
55dB(UPC), 65dB(APC)

Operating Temperature(Degree)
-40 ~ 75
