KF4A

Swift KF4A is a highly advanced and accurate ACTIVE cladding alignment fusion splicer, which has all-in-one features as follows stripping, cleaning, cleaving, splicing, and protecting. Also, Swift KF4A is the best fit for Fusion Splice-On-Connector (FSOC) & Hardened FSOC (HFSOC) of Data Center and FTTH network applications.

Features and Benefits

ALL-IN-ONE SYSTEM OPERATING (Stripping, Cleaning, Cleaving, Splicing, Protecting)
Compatible with Fusion Splice-On-Connector (FSOC) in accordance with the Industrial Standard
Applied to Hardened Connector (HFSOC)

Specifications

Fiber Alignment

Active Cladding Alignment

Splicing Time

Typical 7sec

Electrode Life

Up to 38,000

Rotating Blade Life

75,000 ~ 110,000 (Optional)

Battery Life

Typical 200 cycles (3,400mAh)

Download

KF4A Fusion Splicer

English

The most reliable quality, SWIFT Auto Thermal Stripper

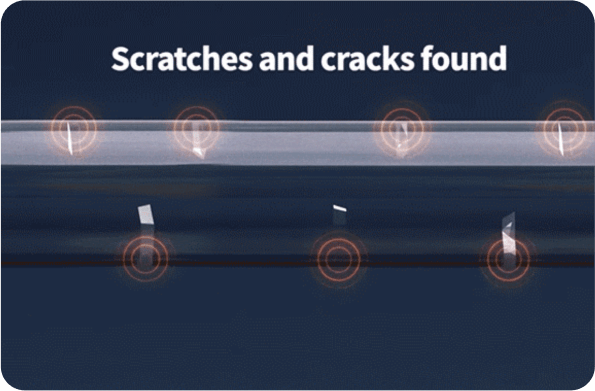

Mechanical Striping

Scratch and Crack Found

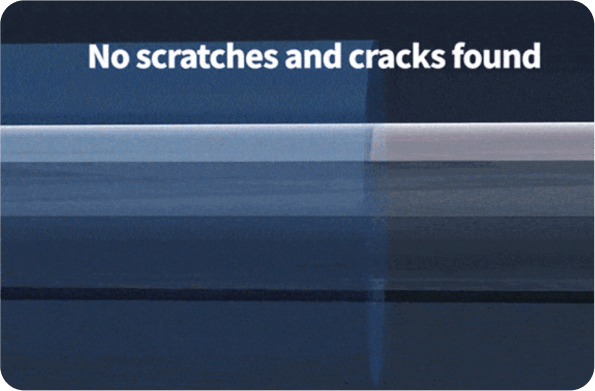

SWIFT Auto Thermal Stripping

No Scratch and Crack on the Fiber

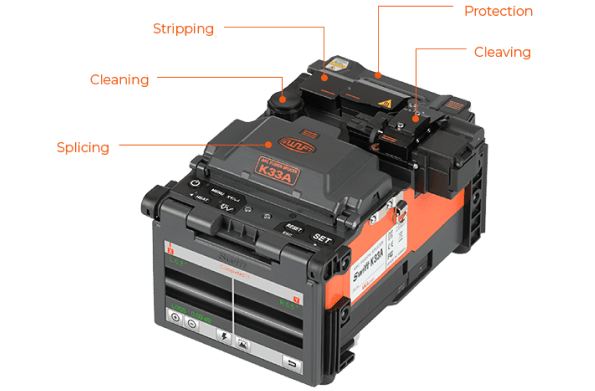

What is All-IN-ONE?

SWIFT fusion splicers integrate thermal stripping, cleaning, cleaving, splicing, and splice protection into one convenient unit, reducing installation time and improving connection reliability. ALLINONE provides an excellent working platform for high productivity.

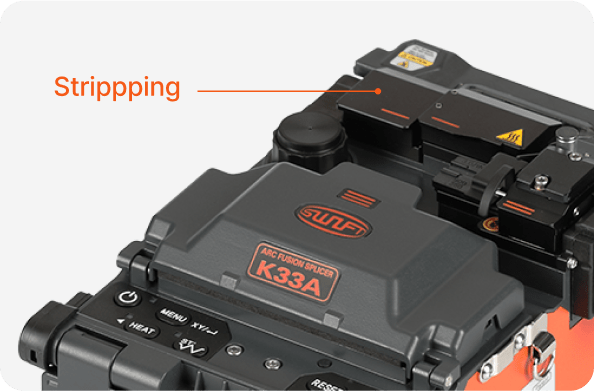

Stripping

No scratches from heated stripping. 1 second strip time. Over 5 kgf tensile strength of fiber after stripping. Featuring excellent tensile force of fiber, the automatic stripper strips up to 28mm in length without damaging the surface of the fiber.

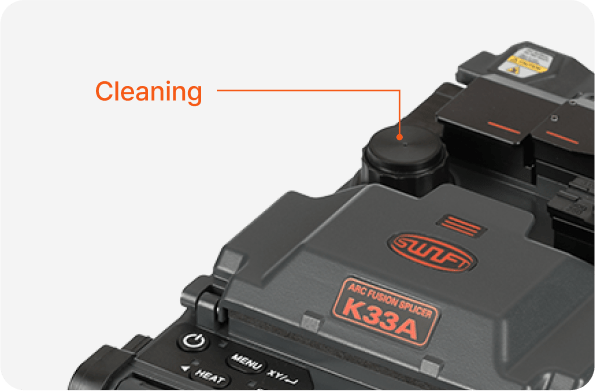

Cleaning

One-touch pump. The alcohol pump can be removed and refilled with cleaning fluid. Avoid splashing the alcohol please cover the top part of the dispenser with cleaning cotton and push it.

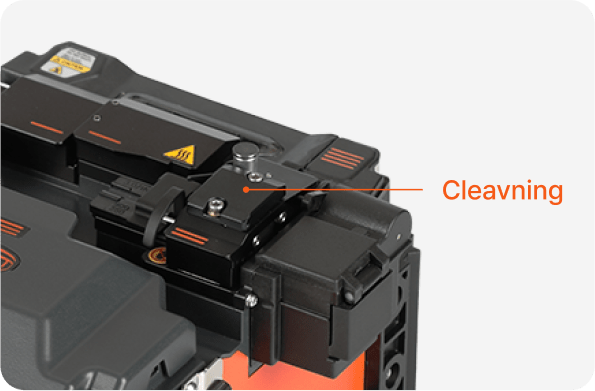

Cleaving

Single-action cleaving. Designed to cleave the fiber at a 90-degree angle. The fiber shards are collected in the slide-type chip box placed at the side of the body.

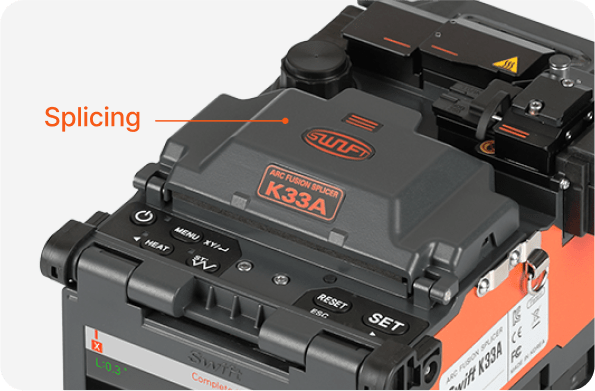

Splicing

Splicing is available from 1 core to 12 cores. After splicing the fiber splice must be visually perfect. Electrode life up to 18,000 splices.

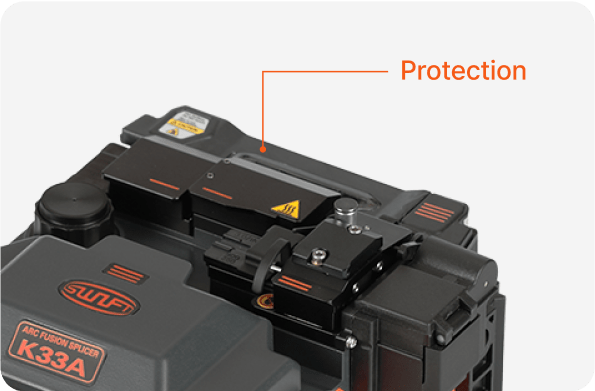

Sleeving (Protection)

Equipped with a sleeve loader to prevent contamination and provide convenience. Increased productivity from built-in sleeving unit.it, reducing installation time and improving connection reliability. ALLINONE provides excellent working platform for high productivity.

Enhancing City Aesthetics with On-Site Fusion Splicing Tech

Before

Pre-connectorized drop cable terminated at the factory has extra cable slack.

SWIFT-FX

Cables are built to Length on-site without unnecessary coils or waste.

360° product viewer

See the product from various angles. It may take some time for the pop-up to appear.

View KF4A
